Job No.: TCS00881/18 & TCS00944/18 |
|
|
||
|
|
|
|
|
||
|
|
Site
Formation and Associated Infrastructural Works for Development of Columbarium,
Crematorium and Related Facilities at Sandy Ridge Cemetery |
|
|
||
|
|
|
|
|
||
|
|
Monthly
Environmental Monitoring and Audit Report (No.26) ¡V September 2020 |
|
|
||
|
|
Prepared For |
|
|
||
|
|
Hsin Chong Tsun Yip Joint Venture & Sang Hing Civil Contractors Co., Ltd |
|
|
||
Date |
Reference No. |
Prepared By |

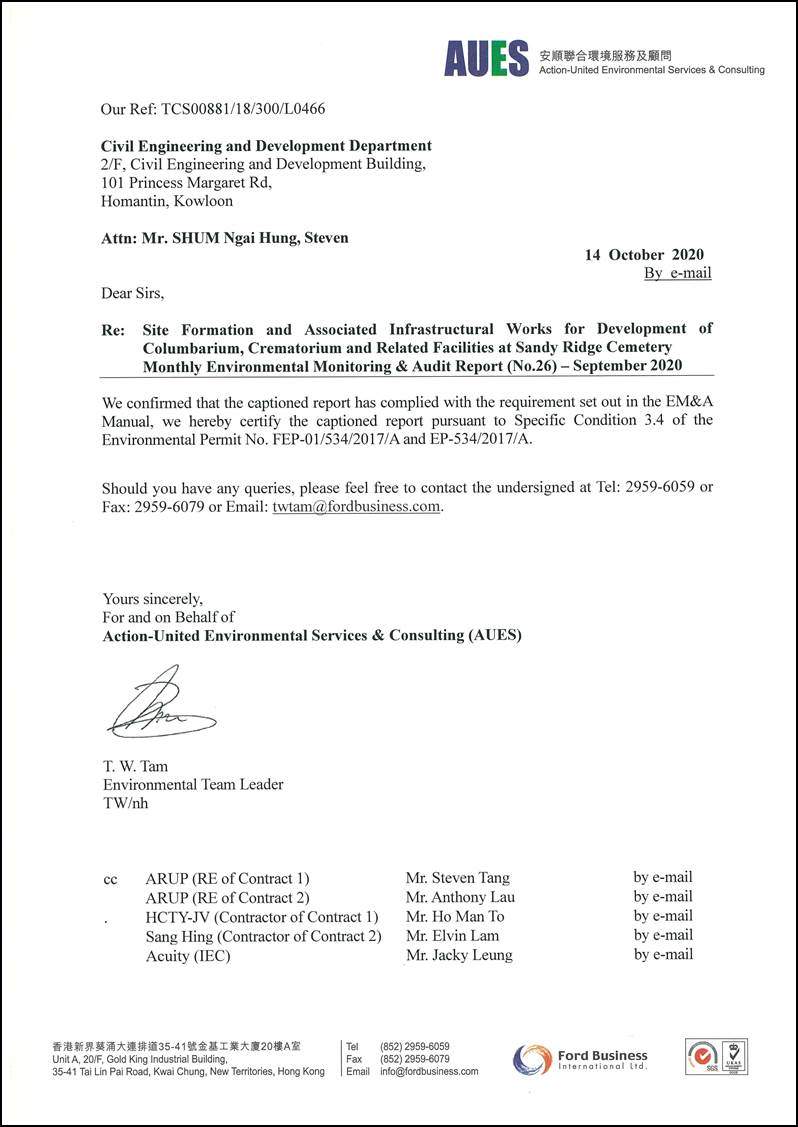

Certified By |
14 October 2020 |
TCS00881/18/600/R0465v2 |
|
|
Nicola Hon (Environmental
Consultant) |
Tam Tak Wing (Environmental
Team Leader) |
Version |
Date |
Remarks |
1 |
12 October 2020 |
First Submission |
2 |
14 October 2020 |
Amended

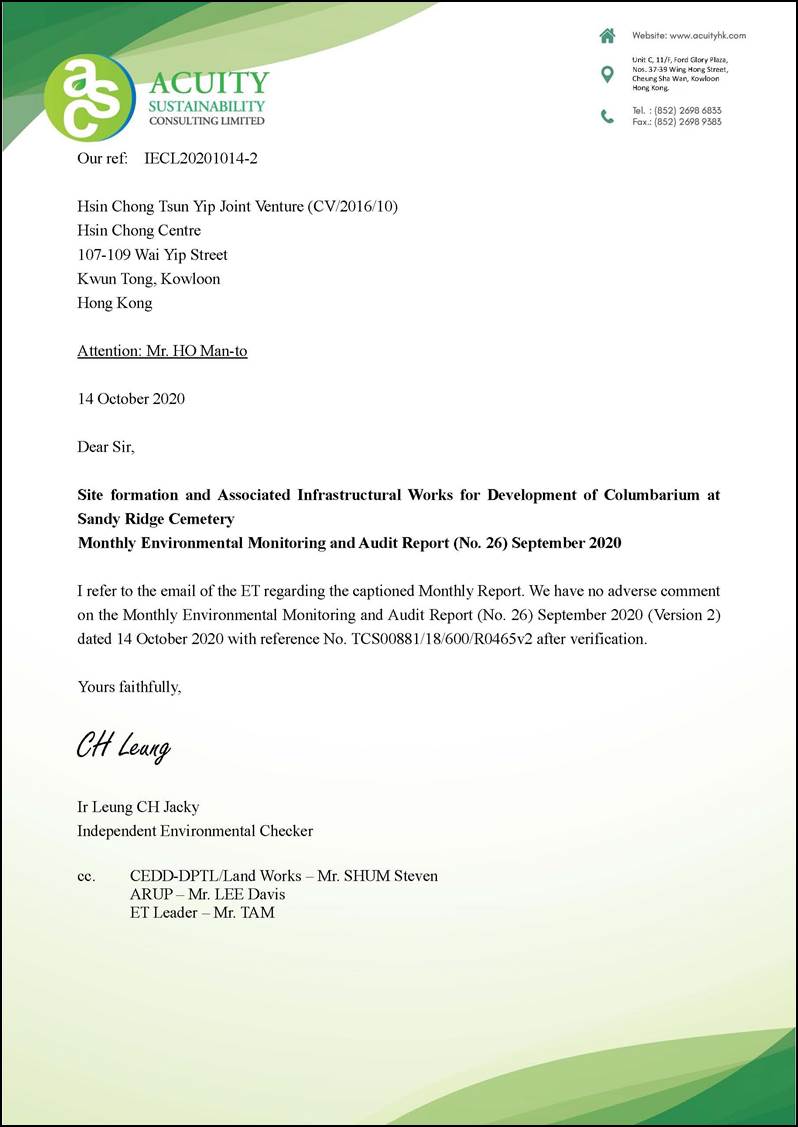

according to the IEC¡¦s comments on 13 October 2020 |
|
|
|
|
|
|
executive summary
ES.01.
This
is the 26th Monthly Environmental
Monitoring and Audit (EM&A) Report summarizing the monitoring results and inspection findings under the
Project for the period from 1st to 30th September 2020 (the Reporting Month).
Environmental Monitoring
and Audit Activities
ES.02.
In the Reporting Month, the major construction works under the
Project included Contract CV/2016/10 (hereinafter named ¡§Contract 1¡¨) and
Contract CV/2017/02 (hereinafter named ¡§Contract 2¡¨). Environmental monitoring activities under
the EM&A programme in this Reporting Month are summarized in the following
table.
Table ES-1 Summary of EM&A Programme
in the Reporting Month
Issues |
Environmental Monitoring Parameters /
Inspection |
Monitoring Locations |
Total Occasions |
|
CV/2016/10 |
CV/2017/02 |
|||
Air
Quality |
1-hour
TSP |
ASR-1 |
ASR-2 ASR-3 |
54 |
24-hour TSP |
18 |
|||
Construction Noise |
Leq
(30min) Daytime |
CN-1 CN-2 |
CN-3 CN-4 |
20 |
Water
Quality |
In-situ
measurement and Water sampling |
M3 |
M1, M2 and M4 |
13 |
Ecology |
Sensitive Habitat |
Transect within site area of CV/2016/10 |
Transect within site area of CV/2017/02 |
1 |
Landscape
& Visual |
Site Inspection |
Site area of CV/2016/10 |
Site area of CV/2017/02 |
1 |
Inspection
& Audit |
Environmental
Team (ET) Regular
Environmental Site Inspection |
Site area of CV/2016/10 |
Site area of CV/2017/02 |
5 |
Independent
Environmental Checker (IEC) Monthly Environmental Site Audit |
1 |
Breach of Action and Limit
(A/L) Levels
ES.03.
In the Reporting Month, no exceedance of air quality,
noise monitoring was recorded. For
water quality monitoring, 2 Action Level and 8
Limit level non-project related exceedances were
recorded. The statistics of environmental exceedance,
Notification of
Exceedance (NOE) issued and investigation of exceedance are summarized in the
following table.
Table ES-2 Breach
of Action and Limit (A/L) Levels in the Reporting Month
Environmental Issues |
Monitoring Parameters |
Action Level |
Limit
Level |
Event & Action |
|
Investigation Findings |
Corrective Actions |
||||
Air
Quality |
1-hour TSP |
0 |
0 |
- |
- |
24-hour
TSP |
0 |
0 |
- |
- |
|
Construction Noise |
Leq30min
Daytime |
0 |
0 |
- |
- |
Water Quality |
DO |
0 |
0 |
- |
- |
Turbidity |
1 |
4 |
Not project
related |
-- |
|
SS |
1 |
4 |
Not project
related |
-- |
Note: NOE ¡V
Notification of Exceedance
ES.04.
Monthly ecological monitoring for sensitive
habitat in both
wetland and non-wetland for area of Contract 1 and Contract 2 were undertaken areas on 3rd
September 2020. In the Reporting
Month, there was no precautionary check for the presence of nesting birds carried out for Contract 1
and Contract 2 outside the breeding season.
ES.05.
Landscape and visual inspection at
both Contracts were undertaken on 24th
September 2020. The Contractor was reminded
to prevent the construction material pile within Tree Protection Zone and
ensure no works is allowed within the TPZ.
ENVIRONMENTAL COMPLAINT
ES.06.
In the Reporting Month, one
(1) environmental
complaint was received from EPD regarding suspected illegal discharge from a
CEDD's construction site at the upstream leading to the accumulation of silting
at DSD's drainage channel at the downstream Nam Hang Stream. In our investigation, there
was no evident of muddy/ turbid discharge from the construction site and water
quality mitigation measures implemented in Contract 2 was general in order and
no deficiency of water quality impact was observed during weekly site
inspection. It is considered that
the complaint was not valid to the Contract. However, the Contractor was reminded to
fully follow the mitigation measures as recommended in the EM&A Manual as
far as practicable to minimize the impact and nuisance to the public. The statistics of environmental complaint
are summarized in the following table.
Table ES-3 Environmental
Complaint Summaries in the Reporting Month
Reporting Month |
Environmental Complaint Statistics |
|||
Frequency |
Cumulative |
Complaint Nature |
||
Contract 1 |
0 |
0 |
NA |
|
Contract 2 |
1 |
1 |
Water |
ES.07.
In addition, no complaint and emergency event
relating to violation of environmental legislation for illegal dumping and landfilling was
received.
Notification of
Summons and Successful Prosecutions
ES.08.
No
environmental summons or successful prosecution was recorded in this Reporting Month. The statistics of summons or successful
prosecutions are summarized in the following tables.
Table ES-4 Environmental
Summons Summaries in the Reporting Month
Reporting Month |
Environmental Summons Statistics |
|||
Frequency |
Cumulative |
Summons Nature |
||
1 ¡V 30 September 2020 |
Contract
1 |
0 |
0 |
NA |
Contract
2 |
0 |
0 |
NA |
Table ES-5 Environmental
Prosecution Summaries in the Reporting Month
Reporting Month |
Environmental Prosecution Statistics |
|||
Frequency |
Cumulative |
Prosecution Nature |
||
1 ¡V 30 September 2020 |
Contract
1 |
0 |
0 |
NA |
Contract
2 |
0 |
0 |
NA |
Reporting Change
ES.09.
No reporting change was
made in the Reporting Month.
Site Inspection
ES.010. In the Reporting Month, joint site inspections for Contract 1 to evaluate the site
environmental performance were carried out by the Resident
Engineer (RE), ET and the Contractor of the Contract
1 on 3rd,
10th, 17th, 24th and 30th September
2020.
Moreover, joint
site inspections for Contract 2 by the RE, ET and the Contractor of
Contract 2 were carried out on 3rd, 10th, 17th, 24th and
30th September 2020. IEC attended the both Contract joint site
inspection on 17th September 2020. No non-compliance was noted
during the site inspections.
ES.011. During wet
season, the Contractors are reminded to pay special attention on water quality mitigation measures and should fully implement the measures as
recommended in the EM&A
Manual, in particular to prevent surface runoff and other pollutants
from flowing to local stream and Conservation Area.
ES.012.
Since dry season is approaching, air quality mitigation measures such as wheel
wash facilities, watering of haul roads, loose soil construction surface and
covering of dusty materials with tarpaulin sheet should be implemented as far
as practicable.
ES.013.
Construction noise mitigation measures such as use
of movable noise barriers and Quality Powered Mechanical Equipment should be properly provided to reduce construction noise impact, where
appropriate.
ES.014. The Contractors should
properly maintain the cleanliness and
tidiness of the site. In
addition, mosquito control should be performed to
prevent mosquito breeding on site.
Table of Contents
2. Project Organization and Construction
progress
2.1 Construction Contract Packaging
2.3 Summary of Environmental Submissions
2.4 Summary of Submission Under the Environmental Permit Requirements
3. Summary
of Impact Monitoring Requirement
3.4 Monitoring
Frequency and Period
3.7 Data
Management and Data QA/QC Control
3.8 Determination
of Action/Limit (A/L) Levels
5.2 Noise
Monitoring Exceedance
6.2 Water
Quality Monitoring Exceedance
7.3 Ecological
Monitoring Survey Findings (Contract
1)
7.4 Ecological
Monitoring Survey Findings (Contract
2)
7.5 Measure
for Protection of Nesting Bird
8.2 Findings
/ Deficiencies During Site Inspection in the Reporting Month
9.2 Records
of Waste Quantities
10.2 Findings
/ Deficiencies During Site Inspection in the Reporting Month
11. Environmental
Complaint and Non-Compliance
11.1 Environmental
Complaint, Summons and Prosecution
12. Implementation
Status of Mitigation Measures
12.2 Tentative
Construction Activities in the Coming Month
12.3 Key
Issues for the Coming Month
13. Conclusions
and Recommentations
List of TABLES
Table 2-1 Status
of Environmental Licenses and Permits for Contract 1
Table 2-2 Status
of Environmental Licenses and Permits for Contract 2
Table 2-3 Status
of Submission as under FEP for Contract 1
Table 2-4 Status
of Submission as under FEP for Contract 2
Table 3-1 Summary
of EM&A Requirements
Table 3-2 Designated
Air Quality Monitoring Location under the Project
Table 3-3 Designated
Construction Noise Monitoring Location under the Project
Table 3-4 Designated
Water Quality Monitoring Stations under the Project
Table 3-5 Air
Quality Monitoring Equipment
Table 3-6 Noise
Monitoring Equipment
Table 3-7 Water
Quality Monitoring Equipment
Table 3-8 Action
and Limit Levels for Air Quality Monitoring
Table 3-9 Action
and Limit Levels for Construction Noise
Table 3-10 Action and Limit
Levels for Water Quality
Table 4-1 Summary
of Air Quality Monitoring Results at ASR-1 under Contract 1
Table 4-2 Summary
of Air Quality Monitoring Results at ASR-2 under Contract 2
Table 4-3 Summary
of Air Quality Monitoring Results at ASR-3a under Contract 2
Table 5-1 Summary
of Construction Noise Monitoring Results under Contract 1
Table 5-2 Summary
of Construction Noise Monitoring Results under Contract 2
Table 6-1 Summary
of Water Quality Monitoring Results ¡V M3 under Contract 1
Table 6-2 Summary
of Water Quality Monitoring Results (M1, M2 and M4) under Contract 2
Table 6-3 Summary
of Field Measurements for Water Quality
Table 6-4 Action
and Limit (A/L) Levels Exceedance Record
Table 6-5 Summary
of Investigation of Water Quality Exceedance in the Reporting Month
Table 7-1 Action
and Limit Levels for Wet Woodland Habitats Monitoring
Table 7-2 Action
and Limit Levels for Non-Wet Woodland Habitats Monitoring
Table 7-3 Schedule
of Faunal Surveys in each year During Construction Phase
Table 7-4 Result
of Faunal Survey under Contract 1
Table 7-5 Result
of Freshwater Communities Survey under Contract 1
Table 7-6 Result
of Faunal Survey under Contract 2
Table 7-7 Result
of Freshwater Communities Survey under Contract 2
Table 8-1 Landscape
& Visual Inspection Finding for Contract 1
Table 8-2 Landscape
& Visual Inspection Finding for Contract 2
Table 9-1 Summary
of Quantities of Inert C&D Materials
Table 9-2 Summary
of Quantities of C&D Wastes
Table 10-1 Site Observations
for the Works of Contract 1
Table 10-2 Site Observations
for the Works of Contract 2
Table 11-1 Statistical
Summary of Environmental Complaints
Table 11-2 Statistical
Summary of Environmental Summons
Table 11-3 Statistical
Summary of Environmental Prosecution
Table 12-1 Environmental
Mitigation Measures
List
of Appendices
Appendix A Layout Plan of the Project
Appendix B Organization Structure and
Contact Details of Relevant Parties
Appendix C Three Months rolling Programme
Appendix D Designated Monitoring
Locations
Appendix E Calibration Certificates of
MONITORING EQUIPMENT and Laboratory Certificate
Appendix F Event and Action Plan
of Air Quality, Noise and Water Quality
Appendix G Monitoring Schedules of the
Reporting Month and Coming Month
Appendix H Monitoring Data of 24-Hour
TSP Air Quality, Noise and Water Quality
Appendix I Graphical Plots of Air
Quality, Noise and Water Quality
Appendix J Meteorological Data of
the Reporting Month
Appendix K Ecological Survey Report
Appendix L Landscape & Visual
Inspection Checklist
Appendix M Monthly Summary Waste Flow Table
Appendix N Implementation Schedule for
Environmental Mitigation Measures (ISEMM)
Appendix O Implementation of Water
Quality Mitigation Measures
1.1.1
Civil Engineering and Development
Department (CEDD) is the Project
Proponent for the Project
¡§Site Formation and Associated
Infrastructural Works for Development of Columbarium, Crematorium and Related
Facilities at Sandy Ridge Cemetery¡¨. The Project is a Designated Project to be implemented
under Environmental Permit No. EP-534/2017/A and FEP-01/534/2017/A. The layout plan of the Project is shown
in Appendix A. Major works to be executed under the Project shall include to the
following:
A Designated Works under EP-534/2017/A
(i)
Site formation of about 8 hectares of
land and associated drainage, sewerage and landscape works for development of
Columbarium and Crematorium facilities at the Sandy Ridge Cemetery;
(ii)
Construction of a new road (about 600m)
including a section of viaduct connecting the platform for Crematorium and Man
Kam To Road and the pick-up/drop-off point at Man Kam To Road;
(iii)
Widening of about 900m of the existing
Sha Ling Road;
(iv)
Widening of about 1.4km of the existing
Lin Ma Hang Road; and
(v)
Improvement works to the existing
barging point at Siu Lam
Non-Designated Works
(i)
Construction of a sewage detention tank
complete with odour and septicity control mechanism;
(ii)
Construction of noise barriers along Sha
Ling Road;
(iii)
Construction of a new Refuse Collection
Point (RCP) near the junction between Man Kam To Road and Sha Ling Road;
(iv)
Landscaping works (including both hard
and soft landscape works);
(v)
Associated tree felling, transplanting
and compensatory planting works;
(vi)
Associated street lighting, street
furniture and road marking, etc.; and
(vii) Other
works which are specified in PS of the Contract.
1.1.2
To facilitate
the Project management, the Project works were separated into three Contracts to be executed which
are described in below sub-sections.
1.1.3
Contract No. CV/2016/10 ¡V Site
Formation and Associated Infrastructural Works for Development of Columbarium
at Sandy Ridge Cemetery (hereinafter
named ¡§Contract 1¡¨):-
Site formation of about 1.77 ha of land for the proposed pick-up
and drop-off area for shuttle bus operation;
Upgrading of a section of 900m existing Sha Ling Road from 3m wide
carriageway to 7.3m wide carriageway with footpath at both sides;
Construction of one EVA with a total length of about 160m;
Construction of noise barriers along Sha Ling Road;
Modification of junction between Man Kam To Road and Sha Ling
Road;
Construction of a new pick up / drop off point at Man Kam To Road;
Relocation and construction of a new refuse collection point near
junction between Man Kam To Road and Sha Ling Road;
Associated geotechnical works including cut and fill slopes, soil
nailing works and retaining structures;
Associated drainage, sewerage and waterworks along Sha Ling Road;
and
Associated landscaping works.
1.1.4
Contract
No. CV/2017/02 ¡V Infrastructural Works at Man Kam To Road and Lin Ma Hang Road
for Development of Columbarium at Sandy Ridge Cemetery (hereinafter
named ¡§Contract 2¡¨):-
Construction of a new road connecting Columbarium site to
Crematorium site;
Construction of one EVA with a total length of about 300m;
Widening of a section of 1.4 km long Lin Ma Hang Road (between Man
Kam To Road and Ping Yuen River) from 6m wide carriageway to 7.3m with 2m width
footpath on both sides;
Provision of a pair of lay-by at Lin Ma Hang Road;
Construction of a new vehicular access connecting the Sheung Shui
Landmark North PTI and Lung Sum Avenue;
Construction of covered walkway along Fanling Station Road;
Removal of planters and central divider along Fanling Station Road
and San Wan Road;
Associated drainage, sewerage, waterworks and utility works along
Man Kam To Road and Lin Ma Hang Road;
Associated geotechnical works including cut and fill slopes, soil
nailing works and retaining structures; and
Associated landscaping works.
1.1.5
CEDD
Contract No. (to be confirmed):-
Site Formation for the platform of the columbarium site;
Construction of two 2 at-grade access roads;
Construction of road junction between Man Kam To Road and the new
access road;
Associated drainage, sewerage and waterworks along the two new
access roads;
Associated geotechnical works including cut and fill slopes, soil
nailing works and retaining structures; and
Associated landscaping works
1.1.6
Hsin Chong Tsun Yip
Joint Venture (hereafter referred as ¡§HCTYJV¡¨) has been awarded Contract 1 on 5 December 2017. According to the
Contract requirement, HCTYJV shall take over the responsibility for part of the Environmental Permit No. EP-534/2017 for ease of management, therefore application for
Further Environmental Permit was submitted
by HCTYJV to
EPD on 26 January 2018 and
Further Environmental Permit No. FEP-01/534/2017 was granted to HCTYJV by EPD on 23 February 2018. Furthermore, EPD issued Environmental Permit No. FEP-01/534/2017/A
on 24 December 2018.
1.1.7
Sang Hing Civil Contractors Company Limited (hereinafter referred as ¡§Sang Hing¡¨) was awarded Contract 2
on 23 May 2018.
The Contract Works is a Designated Project as under Environmental Permit
(EP) No. EP-534/2017.
Furthermore, EPD issued Environmental
Permit No. EP-534/2017/A on
24 December 2018.
1.1.8
Action-United Environmental Services &
Consulting (AUES) has been commissioned by the Contractors as an
Environmental Team (ET) to
implement the Environmental
Monitoring and Audit (EM&A) programme in
accordance with the approved EM&A Manual as well as the associated duties.
As part of
the EM&A programme, baseline monitoring to determine the ambient environmental
conditions was completed before construction work
commencement. The Baseline
Monitoring Report (air, noise and water) certified by ET Leader (ETL) and
verified by Independent Environmental Checker (IEC) was submitted to Environmental
Protection Department (EPD) and it was approved by EPD on 25
October 2018.
1.1.9
Major construction work of Contract 1 and
Contract 2 was
commenced on 16 August 2018 and 5 November 2018 respectively.
1.1.10 This is the 26th Monthly EM&A Report summarizing the monitoring results and inspection findings for
the period
from 1st to 30th September 2020.
1.2.1
The
Monthly EM&A Report is
structured into the following sections:-
Section 1 Introduction
Section 2 Project Organization and Construction Progress
Section 3 Summary of Monitoring Requirements
Section 4 Air Quality Monitoring Results
Section 5 Noise Monitoring Results
Section 6 Water Quality Monitoring Results
Section 7 Ecology Monitoring Results
Section 8 Landscape & Visual
Section 9 Waste Management
Section 10 Site Inspections
Section 11 Environmental Complaints and Non-Compliance
Section 12 Implementation Status of Mitigation Measures
Section 13 Conclusions and Recommendation
2.1.1
To facilitate the project management and implementation, the
Project was divided
by the following contracts:
Contract
1 (Contract No.
CV/2016/10)
Contract
2 (Contract No.
CV/2017/02)
Contract
3 (Contract No. TBA)
2.1.2
Organization
structure and contact details of relevant parties with respect to on-site
environmental management are shown in Appendix B.
2.2.1
The
three-month rolling construction programme for Contract
1 and Contract 2 are enclosed
in Appendix C. Construction activities of the Contract 1 and Contract
2 undertaken in the Reporting Month are presented
below.
Contract 1
(CV/2016/10)
l General site housekeeping
l Bulk excavation
l Construction of cut slope, installation of soil nailing
and construction of surface channel and planter wall
l Construction
of fill slope and surface channel
l Construction
of pick-up and drop-off Point near Man Kam To Road
l Construction
of storm/ sewer drain
l Construction
of noise barrier
Contract 2
(CV/2017/02)
l Construction of manhole,
gullies, drainage pipe at Lin Ma Hang Road between CH565-675 Northbound &
CH1265-1365 Southbound.
l Man Kam To Road DN800 DI
Sewerage Pipe FM4.18-4.19(50m)
l Reinstatement for Man Kam To
Road DN800 DI Sewerage Pipe Trench FM4.19-FM4.23 (170m)
l Soil Nail Works at Lin Ma Hang
Road Slope C225 & C231
l Filling Works and drainage
works for slope FS18 (Part A1).
l Backfilling of Retaining Wall
13
l Piling Works for Retaining Wall
14
2.3.1
Summary of the relevant permits, licenses,
and/or notifications on environmental protection for the Project in this Reporting
Month is presented in Tables 2-1 and 2-2.
Table
2-1 Status of Environmental Licenses and Permits for Contract 1
Item |
Description |
License/ Permit ref
no. |
License/ Permit Status |
1 |
Air
Pollution Control (Construction Dust) Regulation |
Ref. no. 428909 Acknowledged by EPD on 20/12/2017 |
Valid |
2 |
Chemical
waste Producer Registration |
WPN:
5231-641-H3937-01 Issued by EPD on 27/03/2018 |
Valid |
3 |
Water
Pollution Control Ordinance |
License no. WT00030795-2018 Issued
date: 9/5/2018 Expire
Date: 31/5/2023 |
Valid |
4 |
Billing
Account for Disposal of Construction Waste |
Account
no.:
7029769 |
Valid |
5 |
Construction
Noise Permit |
GW-RN0222-20 (expired on 30 Sep 2020) |
Valid |
Table
2-2 Status of Environmental Licenses and Permits for Contract 2
Item |
Description |
License/ Permit ref
no. |
License/ Permit Status |
||
1 |
Air Pollution
Control (Construction Dust) Regulation |
Ref. no. 440406 Acknowledged by EPD on 14/12/2018 |
Man Kam To Road (near Sha Ling Road to Kong Nga
Po Road |
Valid |
|
Ref. no. 440405 Acknowledged by EPD on 14/12/2018 |
Fanling Station Road |
Valid |
|||
Ref. no. 440404 Acknowledged by EPD on 14/12/2018 |
Sa Ling Road (Sandy Ridge Cemetery) |
Valid |
|||
Ref. no. 440401 Acknowledged by EPD on 14/12/2018 |
Lin Ma Hang Road (San Uk
Ling ¡V Muk Wu Nga Yiu) |
Valid |
|||
Ref. no. 440402 Acknowledged by EPD on 14/12/2018 |
Lung Sum Avenue (near Landmark North) |
Valid |
|||
2 |
Chemical
waste Producer Registration |
WPN:
5213-641-S4151-01 Issued by EPD on 04/02/2019 |
Valid |
||
3 |
Water
Pollution Control Ordinance |
License no: WT00032936-2018 Issued date: 16/01/2019 Expire Date: 31/01/2024 |
Man Kam To Road & Lin Ma Hang Road, Man Kam
To |
Valid |
|
License no: WT00033335-2019 Issued date: 29/03/2019 Expire Date: 31/03/2024 |
Columbarium at Sandy Ridge Cemetery |
Valid |
|||
License no: WT00034717-2019 Issued date: 9/10/2019 Expire Date: 31/10/2024 |
Fanling Station Road |
Valid |
|||
4 |
Billing
Account for Disposal of Construction Waste |
Account
no.: 7031098 |
Valid |
||
2.4.1
Tables 2-3 to 2-4 summarized the
submission status under the EP and/or FEP stipulation in the Reporting Month.
Table
2-3 Status of Submission as under FEP
Item |
EP and / or FEP Stipulation |
Description |
Status |
1 |
Condition 2.10 of FEP |
Management organization of : i) the main
construction companies; ii) ET; and iii) IEC and the supporting team |
Submitted on 11 April 2018 |
2 |
Condition 2.11 of FEP |
i) Detailed phasing programme
of all construction works; and ii) Location plan of all construction works |
Submitted on 12 April 2018 |
3 |
Condition
2.12 of FEP |
Contamination
Assessment Plan (CAP) |
Approved by EPD on 27 May 2019 |
4 |
Condition 2.13 of FEP |
Grassland Reinstatement Plan |
Re-submitted on 31
May 2019 |
5 |
Condition 2.14 of FEP |
Vegetation
Survey Report for Contract 1 |
Approved by EPD on 12 October 2018 |
6 |
Condition 2.15 of FEP |
Vegetation Transplantation Proposal
Contract 1 |
Approved by EPD on 12 October 2018 |
7 |
Condition 2.17 of FEP |
Woodland
Compensation Plan (Rev.05) |
Approved by EPD on 30 Jun 2020 |
8 |
Condition 2.18 of FEP |
Monitoring and
Survey Plan for Golden-headed Cisticola
for Contract 1 (Rev.02) |
Approved by EPD on 22 Oct 2019 |
9 |
Condition 2.20 of FEP |
Landscape
& Visual Mitigation and Tree Preservation Plan(s)
Contract 1 (Rev.04) |
Re-submitted on 17 Apr 2020 |
10 |
Condition 2.22 of FEP |
Traffic Noise
Mitigation Plan Contract 1 (Rev. 4) |
Re-submitted on 10 Nov 2019 |
11 |
Condition 3.3 of the FEP |
Baseline
Monitoring Report (Air, Noise and Water) |
Approved by EPD on 25 October 2018 |
12 |
Condition 4.2 of the FEP |
The Contract Internet website |
Internet website address has notified EPD on 15 Jun 2018 |
Table
2-4 Status of Submission as under EP
Item |
EP and / or FEP Stipulation |
Description |
Status |
1a |
Condition 2.10 of EP |
Management organization of : i) the main
construction companies; ii) ET; and iii) IEC and the supporting team |
Submitted on 24 September 2018 |
2a |
Condition 2.11 of EP |
i) Detailed phasing programme
of all construction works; and ii) Location plan of all construction works |
Submitted on 26 September 2018 |
3 |
Condition
2.13 of EP |
Contamination
Assessment Plan (CAP) |
Approved by EPD on 27 May 2019 |
4 |
Condition 2.14 of EP |
Grassland Reinstatement Plan |
Re-submitted on 31
May 2019 |
5 |
Condition 2.15 of EP and |
Vegetation
Survey Report Contract 2 |
Re-submitted on 30 Oct 2019 |
6 |
Condition 2.16 of EP |
Vegetation Transplantation Proposal
Contract 2 |
Re-submitted on 30 Oct 2019 |
7 |
Condition 2.18 of EP |
Woodland
Compensation Plan (Rev.05) |
Approved by EPD on 30 Jun 2020 |
8 |
Condition 2.19 of EP |
Monitoring and Survey
Plan for Golden-headed Cisticola Contract 2 |
Re-submitted on 30 Oct 2019 |
9 |
Condition 2.22 of EP |
Landscape
& Visual Mitigation and Tree Preservation Plan(s)
Contract 2 |
Re-submitted on 25 Mar 2019 |
10 |
Condition 2.24 of EP |
Traffic Noise
Mitigation Plan Contract 2 |
Re-submitted on 12 Aug 2019 |
11 |
Condition 3.3 of the EP |
Baseline
Monitoring Report (Air, Noise and Water) |
Approved by EPD on 25 October 2018 |
12 |
Condition 4.2 of the EP |
The Contract Internet website |
Internet website address has notified EPD on 15 June 2018 |
3.1.1
The EM&A requirements are set out in the Approved EM&A Manual. Environmental
issues such as air quality, construction noise, water quality and ecology were
identified as the key issues during the construction phase of the Project.
3.1.2
A summary of construction phase EM&A
requirements are presented in the sub-sections below.
3.2.1
The EM&A impact monitoring shall cover the following
environmental aspect:
•
Air quality;
•
Construction noise;
•
Water quality;
•
Ecology; and
•
Landscape and visual
3.2.2
A summary of the monitoring parameters is presented in Table
3-1 below
Table 3-1 Summary
of EM&A Requirements
Environmental Issue |
Parameters |
Air Quality |
1-hour
TSP; 24-hour
TSP |
Noise |
Leq(30min) during normal working
hours.; and
Leq(15min) during the
construction works undertaken in Restricted Hours |
Water Quality |
In-situ Measurements Dissolved
Oxygen Concentration (mg/L) & Saturation (% ); Temperature
(¢J); Turbidity
(NTU); Salinity
(ppm) pH
unit; Water
depth (m); and Stream
Flow Velocity (m/sec). |
Laboratory Analysis Suspended
Solids (mg/L) |
|
Ecology |
Ecologically sensitive habitats
(wetland habitats and non-wetland habitats) |
3.3.1
According to
the Approved EM&A Manual of the Project ¡V Site Formation and Associated Infrastructural Works for Development
of Columbarium, Crematorium and Related Facilities at Sandy Ridge Cemetery, the designated monitoring locations for air
quality, noise, water quality and ecology under the monitoring programme, is shown in Appendix D.
3.3.2
Since the Project was divided
into three Works Contracts and all Contracts will be
commenced at different time, the
construction phase impact monitoring will only be performed at the
Contract-related monitoring stations upon commencement of each
Contract Works.
Air Quality
3.3.3
There were three (3) designated
air quality monitoring
stations recommended in the Approved EM&A Manual
Section 5.6.1.1. There was proposed
relocation of air quality monitoring location ASR-3 in October 2018 since the
landlord refused to set up the HVS at his premises and nearby Conservation Area
due to noise nuisance and Muk Wu Nga Yiu House No. 2A was proposed as
alternative location ASR-3a. The proposal dated on 9 November 2018
which verified by IEC was submitted to EPD for approval. Based on rationale
in Section 3.3.2, the Contract-related air quality monitoring location
for construction
phase were summarized in Table 3-2 and illustrated in Appendix D.
Table 3-2 Designated
Air Quality Monitoring Location under the Project
Location ID |
Description in EM&A Manual |
Location |
Related
Work Contract |
ASR-1 |
Village
House along Man Kam To Road |
Sha Ling Village House No.6 |
Contract
1 |
ASR-2 |
Village House at San Uk Ling |
San Uk
Ling Village House No.1 |
Contract
2 |
ASR-3 |
Village
House at Muk Wu Nga Yiu |
Muk Wu Nga Yiu
House No.28 |
Contract
2 |
ASR-3a (#) |
Village
House at Muk Wu Nga Yiu |
Muk Wu Nga Yiu
House No.2A |
Contract
2 |
Remark: (#) There was proposed relocation of air quality
monitoring location ASR-3 in October 2018. The
proposal dated on 9 November 2018 after verified by IEC was submitted to EPD
for approval.
3.3.4
If the designated monitoring
location is required to relocate, alternative monitoring location shall agree with IEC and seek for EPD approval
which shall meet the following criteria:
i)
Be at the site boundary or such locations
close to the major dust emission source;
ii)
Close to the sensitive receptors;
iii)
Take into account the prevailing meteorological conditions;
iv)
For monitoring location located in the vicinity of the ASRs, care
shall be taken to cause minimal disturbance to the occupants during monitoring.
v)
When positioning the HVS, the following points shall be noted:
a.
a horizontal platform with appropriate support to secure the
samples against gusty wind shall be provided;
b.
no two samplers shall be placed less than 2m apart;
c.
the distance between the HVS and an obstacle, such as buildings,
must be at least twice the height that the obstacle protrudes above the HVS;
d.
a minimum of 2 m separation from walls,
parapets and penthouses is required for HVS at the rooftop;
e.
a minimum of 2 m separation from any
supporting structure, measures horizontally is required;
f.
no furnace or incinerator flue is nearby;
g.
airflow around the sampler is unrestricted;
h.
the HVS is more than 20 m from the dripline;
i.
any wire fence and gate to protect the HVS, shall not cause any
obstruction during monitoring;
j.
permission must be obtained to set up the HVS and to obtain access
to the monitoring stations; and
k.
a secured supply of electricity is needed
to operate the HVS.
Construction
Noise
3.3.5
There were four (4) designated noise
monitoring locations recommended in the Approved EM&A
Manual Section 6.5.1.1. Based on
rationale in
Section 3.3.2, the
Contract-related noise quality monitoring location for construction
phase were summarized in Table 3-3 and illustrated in Appendix D.
Table 3-3 Designated Construction
Noise Monitoring Location under the Project
Location ID |
Description in EM&A Manual |
Location |
Related
Work Contract |
CN-1 |
Village house to the west of
Sha Ling Road |
Village house to the west of
Sha Ling Road (free field condition) |
Contract
1 |
CN-2 |
Village house to the north of Man Kam To
Road |
Sha Ling Village
House No. 25 (free field condition) |
Contract
1 & 3 |
CN-3 |
Village house near San Uk Ling |
San Uk Ling
Village House No. 18 (free field condition) |
Contract
2 |
CN-4 |
Village house of Muk Wu |
Muk Wu Village House No. 267
(1m façade from the building) |
Contract
2 |
Water Quality
3.3.6
There were four (4) water quality monitoring
locations recommended in the Approved EM&A
Manual Section 7.6.1.2. The locations and coordinates of water quality monitoring were listed in Table 3-4. Based on rationale in Section 3.3.2, the Contract-related water quality monitoring
location for construction phase were summarized in Table 3-4 and illustrated in Appendix D.
Table 3-4 Designated Water Quality
Monitoring Stations under the Project
Proposed Location ID |
Co-ordinates |
Description |
Related
Work Contract |
|
North |
East |
|||
M1 |
843 431 |
831 308 |
Midstream
of Nam Hang Stream |
Contract
2 |
M2 |
843 840 |
831 101 |
Downstream
of Nam Hang Stream |
Contract
2 |
M3 |
843 509 |
830 040 |
Wetland
in the Conservation Area near Yuen Leng Chai |
Contract
1 |
M4 |
843 997 |
831 783 |
Watercourse across Lin Ma
Hang Road, running from east of San Uk Ling to Man
Kam To Boundary Control Point |
Contract
2 |
3.4.1
The requirements of impact monitoring were stipulated in Sections 5.8.1.1, 6.7.1.1 and
7.8.1.4 of the approved EM&A
Manual and presented as follows.
Air Quality
Monitoring
3.4.2
Monitoring frequency for air quality impact monitoring is as follows:
1-Hour TSP |
3 sets of 1-hour TSP monitoring shall be
carried out once every six days during construction periods |
24-Hour TSP |
24-hour TSP monitoring shall be
carried out every six days during construction periods |
Noise Monitoring
3.4.3
Noise impact monitoring shall be carried out once per week during
construction periods. The noise
measurement for the time period between 0700 and 1900 hours shall be measured
in terms of Leq (30 minutes) or 6 sets
of Leq (5mins).
Water Quality Monitoring
3.4.4
The monitoring frequency shall be 3 days per week during
construction phase and the interval between two sets of monitoring shall not be less
than 36 hours.
3.5.1
The
monitoring equipment using for the EM&A program as proposed by the ET shall
be verified by the IEC.
Air Quality
Monitoring
3.5.2
The 24-hour and 1-hour TSP levels shall be measured by following
the standard high volume sampling method as set out in the Title 40 of the Code of Federal Regulations, Chapter 1 (Part 50), Appendix B. If ET proposes to use a direct reading
dust meter to measure 1-hour TSP levels, it shall submit sufficient information
to IEC for approval.
3.5.3
The filter paper
of 24-hour TSP measurement shall be determined by HOKLAS accredited laboratory.
3.5.4
All equipment used by ET for air quality monitoring is listed in Table
3-5.
Table 3-5 Air
Quality Monitoring Equipment
Equipment |
Model |
24-hour TSP |
|
High Volume Air
Sampler (HVAS) |
TISCH High Volume Air Sampler, HVS Model
TE-5170 |
Calibration
Kit |
TISCH Model TE-5025A |
1-Hour TSP |
|
Portable Dust Meter |
Sibata LD-3 Laser Dust monitor
Particle Mass Profiler & Counter |
Wind Data Monitoring Equipment
3.5.5
According to the approved EM&A Manual, wind data monitoring
equipment shall also be provided and set up for logging wind speed and wind
direction near the dust monitoring locations. The equipment installation location
shall be proposed by the ET and agreed with the IEC. For installation and operation of wind
data monitoring equipment, the following points shall be observed:
1)
The wind sensors should be installed 10 m above ground so that
they are clear of obstructions or turbulence caused by buildings.
2)
The wind data should be captured by a data logger. The data shall
be downloaded for analysis at least once a month.
3)
The wind data monitoring equipment should be re-calibrated at
least once every six months.
4)
Wind direction should be divided into 16 sectors of 22.5 degrees
each.
3.5.6
ET has liaised with the premises owners/ landlords to grant the permission
for the HVS installation. However, they rejected to set
up wind data
monitoring equipment installation in their premises.
3.5.7
Under this situation, the ET proposed to obtain representative
wind data from the Hong Kong Observatory Ta Kwu Ling Weather Station. Ta Kwu Ling Station is located near the Project site which situated at the sea level above 15mPD and
the wind data
monitoring equipment is installed 10 m above the existing ground.
Noise Monitoring
3.5.8
Sound level meter in
compliance with the International Electrotechnical
Commission Publications 651: 1979 (Type 1) and 804: 1985 (Type 1) specifications
shall be used for carrying out the noise monitoring. The sound level meter shall be checked
using an acoustic calibrator. The
wind speed shall be checked with a portable wind speed meter capable of
measuring the wind speed in ms-1 before each noise monitoring event. Noise measurements should not be made
in fog, rain, wind with a steady speed exceeding 5 m s-1 or wind
with gusts exceeding 10 m s-1.
3.5.9
Noise monitoring equipment used for impact monitoring is listed in
Table
3-6.
Table 3-6 Noise
Monitoring Equipment
Equipment |
Model |
Integrating Sound Level Meter |
Rion NL-52 Sound Level
Meter |
Calibrator |
Rion NC-73 Acoustical
Calibrator |
Portable Wind Speed Indicator |
Testo Anemometer |
3.5.10
Sound level meters listed above comply with the International Electrotechnical
Commission Publications 651: 1979 (Type 1) and 804: 1985 (Type 1) specifications, as recommended in TM issued
under the NCO.
Water Quality
Monitoring
3.5.11 Water
quality parameters include dissolved oxygen, water
temperature & depth, turbidity, salinity, pH and stream flow velocity shall
be measured in-situ, and suspended solids shall be analyzed by a HOKLAS-accredited
testing laboratory.
Dissolved Oxygen and Temperature Measurement
3.5.12 The dissolved oxygen (DO)
measuring instruments should be portable and weatherproof. The equipment should
also complete with cable and sensor, and DC power source. It should be capable
of measuring:
• A DO level in the range of 0 ¡V
20 mg/L and 0 ¡V 200% saturation; and
• A
temperature of 0 ¡V 45 degree Celsius.
3.5.13
The equipment should have a
membrane electrode with automatic temperature compensation complete with a
cable.
3.5.14
Should salinity compensation not
be built-in to the DO equipment, in-situ salinity should be measured to
calibrate the DO measuring instruments prior to each measurement.
Turbidity Measurement
3.5.15
The turbidity measuring instruments should be a portable and
weatherproof with DC power source.
It should have a photoelectric sensor capable of measuring turbidity
level between 0¡V1000 NTU (for example, Hach model
2100Q or an
approved similar instrument).
Salinity Measurement
3.5.16
A portable salinometer capable of measuring
salinity in the range of 0¡V40 parts per thousand (ppt)
should be provided for measuring salinity of the water at each monitoring
location.
pH Measurement
3.5.17
A portable pH meter capable of measuring a
range between 0.0 and 14.0 should be provided to measure pH under the specified
conditions accordingly to the APHA Standard Methods.
Water Depth Measurement
3.5.18
A portable, battery-operated echo sounder or an approved similar
instrument should be used for water depths determination at each designated
monitoring station.
Stream Flow Velocity Equipment
3.5.19 Since the EM&A Manuals do
not specified instrument to use stream flow velocity measurement, the
monitoring of stream flow velocity is therefore proposed to be conducted by
using a flow probe which is a digital water velocity meter.
Water Sampling Equipment
3.5.20
A water sampler is required for suspended solid (SS)
monitoring. A water sampler e.g. Kahlsico Water Sampler, which is a transparent PVC cylinder
with capacity not less than 2 litres, will be used
for water sampling if water depth over than 0.5m.
3.5.21
For sampling from very shallow water depths e.g. <0.5 m, water
sample will be collected from water surface below 100mm using plastic bottle to avoid
inclusion of bottom sediment or humus.
Moreover, Teflon/stainless steel bailer or self-made sampling buckets
maybe used for water sampling. The
equipment used for sampling will be depended the sampling location and depth
situations.
Sample Containers and Storage
3.5.22
Water samples for suspended solid should be stored in high density
polythene bottles with no preservative added, packed in ice (cooled to 4¢XC
without being frozen) and delivered to the laboratory within 24 hours of
collection and be analyzed as soon as possible after collection.
3.5.23
Analysis of suspended solids should be carried out in a HOKLAS or
other accredited laboratory. Water samples of about 1L should be collected at
the monitoring stations for carrying out the laboratory suspended solids
determination. The SS determination
work should start within 24 hours after collection of the water samples. The SS
analyses should follow the APHA Standard
Methods 2540D with Limit of Reporting of 2 mg/L.
3.5.24
Details
of the equipment used for water quality monitoring are listed in Table 3-7 below.
Table 3-7 Water
Quality Monitoring Equipment
Equipment |
Model |
Water Depth Detector |
Tape measures |
Water Sampler |
A
2-litre transparent PVC cylinder with latex cups at both ends or
Teflon/stainless steel bailer or self-made sampling bucket |
Thermometer & DO meter |
YSI Professional DSS/ YSI 550A |
pH meter |
AZ8685 pH meter /
YSI Professional DSS |
Turbidimeter |
Hach 2100Q/ YSI Professional DSS |
Salinometer |
Atago refractometer Atago S Salinity
Meter / YSI Professional DSS |
Stream Flow Velocity |
FP211 Global Flow Probe |
Sample Container |
High density polythene
bottles (provided by laboratory) |
Storage Container |
¡¥Willow¡¦ 33-litter plastic
cool box with Ice pad |
3.5.25
Furthermore, Suspended
solids (SS) analysis was carried out by ALS Technichem (HK) Pty Ltd. Which is one a local HOKLAS-accredited
laboratory
3.6.1
The HVAS is operated and calibrated on a regular basis in accordance
with the manufacturer¡¦s instruction using Tisch
Calibration Kit Model TE-5025A.
Calibration would carry out at fortnightly interval. The calibration data are properly
documented and the records are maintained by ET for future reference. Furthermore, Tisch Calibration Kit will be
calibrated by the manufacturer in yearly basis.
3.6.2
The 1-hour TSP meter calibrated by a local HOKLAS-accredited
laboratory would be undertaken in yearly basis. Zero response of the equipment was checked
before and after each monitoring event.
3.6.3
The sound level meter and acoustic calibrator are
calibrated and certified by a laboratory accredited under HOKLAS or any other
international accreditation scheme at yearly basis.
3.6.4
The multi-parameter Water Quality Monitoring
System is calibrated by HOKLAS accredited laboratory of three month intervals.
3.6.5
All updated calibration certificates of
the monitoring equipment used for the impact monitoring program in this
Reporting Month are attached in Appendix E.
3.7.1
The
impact monitoring data are handled by the ET¡¦s systematic data recording and
management, which complies with in-house Quality Management System. Standard
Field Data Sheets (FDS) are used in the impact monitoring program.
3.7.2
The
monitoring data recorded in the equipment e.g. 1-hour TSP meter, noise meter
and Multi-parameter Water
Quality Monitoring System are downloaded
directly from the equipment at the end of each monitoring day. The downloaded monitoring data are input
into a computerized database properly maintained by the ET. The laboratory results are input
directly into the computerized database and QA/QC checked by personnel other
than those who input the data. For
monitoring activities require laboratory analysis, the local laboratory follows
the QA/QC requirements as set out under the HOKLAS scheme for all laboratory
testing.
3.8.1
The baseline monitoring results form the basis for
determining the environmental acceptance criteria for the impact monitoring. The air quality, construction noise and
water quality criteria, namely Action and Limit levels were established according to
Approved EM&A Manual, and they are listed in Tables 3-8, 3-9 and
3-10 below.
Table 3-8 Action and Limit Levels for Air
Quality Monitoring
Monitoring Station |
Action Level (mg /m3) |
Limit Level (mg/m3) |
||
1-hour TSP |
24-hour TSP |
1-hour TSP |
24-hour TSP |
|
ASR-1 |
331 |
181 |
500 |
260 |
ASR-2 |
316 |
165 |
500 |
260 |
ASR-3 |
307 |
160 |
500 |
260 |
Table 3-9 Action
and Limit Levels for Construction Noise
Monitoring Location |
Action Level |
Limit Level in dB(A) |
Time Period: 0700-1900 hours
on normal weekdays |
||
CN-1,CN-2, CN-3, CN-4 |
When
one or more documented complaints are received |
75 dB(A) |
Note: * Reduces to 70 dB(A)
for schools and 65 dB(A) during the school examination periods.
Table 3-10 Action and Limit
Levels for Water Quality
Parameter |
Performance criteria |
Monitoring Location |
|||
M1 |
M2 |
M3 |
M4 |
||
DO (mg/L) |
Action Level |
3.03 |
4.99 |
4.58 |
3.62 |
Limit Level |
2.97 |
4.90 |
4.49 |
3.52 |
|
Turbidity (NTU) |
Action Level |
7.1 |
39.7 |
5.6 |
5.4 |
Limit Level |
7.6 |
42.2 |
5.9 |
5.9 |
|
SS (mg/L) |
Action Level |
8.5 |
29.0 |
9.3 |
4.8 |
Limit Level |
10.1 |
31.0 |
9.5 |
5.0 |
|
Notes: •
For DO,
non-compliance of the water quality limits occurs when monitoring result is
lower than the limits •
For turbidity and
SS, non-compliance of the water quality limits occurs when monitoring result
is higher than the limits. |
3.8.2
Should
non-compliance of the environmental quality criteria occurs, remedial actions will
be triggered according to the Event and Action Plan enclosed in Appendix F.
4.1.1
In the Reporting Month, air quality monitoring was
performed at all designated locations. Impact monitoring schedule provided to all relevant parties was shown in Appendix G.
4.1.2
In this Reporting Month, there were 6 sessions of 24-hour TSP and 18 sessions of 1-hour TSP undertaken
at each designated station for air quality monitoring. The air quality
monitoring results are
summarized in Tables 4-1 to 4-3.
The database of 24-hour TSP is shown in Appendix
H and the graphical
plots of monitoring result are shown in Appendix
I.
Table
4-1 Summary
of Air
Quality
Monitoring Results at ASR-1 under Contract 1
Date |
24-hour
TSP (mg/m3) |
1-hour
TSP (mg/m3) |
||||
Date |
Start Time |
1st hour
measured |
2nd hour
measured |
3rd hour
measured |
||
1-Sep-20 |
47 |
2-Sep-20 |
13:29 |
109 |
114 |
122 |
7-Sep-20 |
24 |
8-Sep-20 |
13:02 |
46 |
49 |
55 |
12-Sep-20 |
24 |
14-Sep-20 |
9:37 |
75 |
66 |
67 |
18-Sep-20 |
20 |
19-Sep-20 |
9:27 |
50 |
53 |
48 |
24-Sep-20 |
31 |
25-Sep-20 |
9:25 |
87 |
82 |
80 |
29-Sep-20 |
35 |
30-Sep-20 |
9:04 |
72 |
75 |
68 |
Average (Range) |
30 (20
¡V 47) |
Average (Range) |
73 (46 ¡V
122) |
Table
4-2 Summary
of Air
Quality
Monitoring Results at ASR-2 under Contract 2
Date |
24-hour
TSP (mg/m3) |
1-hour
TSP (mg/m3) |
||||
Date |
Start Time |
1st hour
measured |
2nd hour
measured |
3rd hour
measured |
||
1-Sep-20 |
37 |
2-Sep-20 |
9:16 |
89 |
92 |
96 |
7-Sep-20 |
15 |
8-Sep-20 |
9:22 |
46 |
50 |
42 |
12-Sep-20 |
22 |
14-Sep-20 |
9:54 |
60 |
58 |
59 |
18-Sep-20 |
15 |
19-Sep-20 |
9:39 |
48 |
50 |
49 |
24-Sep-20 |
13 |
25-Sep-20 |
9:33 |
77 |
81 |
83 |
29-Sep-20 |
13 |
30-Sep-20 |
9:40 |
66 |
70 |
62 |
Average (Range) |
19 (13
¡V 37) |
Average (Range) |
65 (42 ¡V
96) |
Table
4-3 Summary
of Air
Quality
Monitoring Results at ASR-3a under Contract 2
Date |
24-hour
TSP (mg/m3) |
1-hour
TSP (mg/m3) |
||||
Date |
Start Time |
1st hour measured |
2nd hour
measured |
3rd hour
measured |
||
1-Sep-20 |
39 |
2-Sep-20 |
9:32 |
85 |
88 |
83 |
7-Sep-20 |
35 |
8-Sep-20 |
9:36 |
43 |
46 |
38 |
12-Sep-20 |
25 |
14-Sep-20 |
10:26 |
47 |
53 |
50 |
18-Sep-20 |
22 |
19-Sep-20 |
9:57 |
45 |
48 |
44 |
24-Sep-20 |
15 |
25-Sep-20 |
10:48 |
71 |
77 |
75 |
29-Sep-20 |
47 |
30-Sep-20 |
9:14 |
63 |
67 |
60 |
Average (Range) |
31 (15 ¡V
47) |
Average (Range) |
60 (38 ¡V
88) |
4.2.1
As
shown in Tables 4-1 to
4-3, the monitoring results of 24-hour and 1-hour TSP monitoring in the Reporting Month were below the Action/ Limit Level.
No Notification of Exceedance (NOE) of air quality monitoring criteria was issued and therefore corrective action was not required. The
meteorological data during the impact monitoring days are summarized in Appendix J.
5.1.1
In the Reporting Month, noise monitoring was performed at
all designated locations.
Impact monitoring
schedule provided to all relevant
parties
was shown in Appendix G.
5.1.2
In
this Reporting
Month, 5 sessions of noise monitoring were undertaken at each designated
noise monitoring location. The sound level were set in a free field
situation for CN1, CN2 and CN3
and therefore a façade correction of
+3dB(A) has been added according to acoustical
principles and EPD guidelines. The monitoring result of noise monitoring is show in Tables 5-1 and 5-2 and the graphical plots are shown in Appendix
I.
Table
5-1 Summary of Construction Noise Monitoring Results under Contract 1
Construction
Noise Level (Leq30min), dB(A) |
||||
Date |
Start Time |
CN1(*) |
Start Time |
CN2(*) |
2-Sep-20 |
11:21 |
69 |
10:44 |
67 |
8-Sep-20 |
13:04 |
73 |
13:41 |
67 |
14-Sep-20 |
14:09 |
64 |
13:28 |
67 |
25-Sep-20 |
9:28 |
64 |
10:13 |
68 |
30-Sep-20 |
15:25 |
71 |
14:48 |
66 |
Limit Level |
75 dB(A) |
(*) A façade correction of +3dB(A) has been added according to acoustical principles and
EPD guidelines.
Table
5-2 Summary of Construction Noise Monitoring Results under Contract 2
Construction
Noise Level (Leq30min), dB(A) |
||||
Date |
Start Time |
CN3 (*) |
Start Time |
CN4 |
2-Sep-20 |
10:03 |
60 |
9:26 |
57 |
8-Sep-20 |
14:21 |
58 |
14:58 |
61 |
14-Sep-20 |
11:36 |
60 |
10:41 |
61 |
25-Sep-20 |
10:52 |
60 |
11:28 |
60 |
30-Sep-20 |
10:25 |
59 |
11:01 |
59 |
Limit Level |
75 dB(A) |
(*) A façade correction of +3dB(A) has been added according to acoustical principles and
EPD guidelines.
5.1.3
Prior and after noise monitoring, the accuracy of the sound level meter
has been checked by
an acoustic calibrator to ensure the measurement within acceptance
range of ¡Ó0.5dB. Moreover, wind speed checked by portable wind speed meter has been performed before noise
monitoring. No noise
measurement was performed in fog, rain, wind with a steady speed exceeding 5 m
s-1 or wind with gusts exceeding 10 m s-1.
5.2.1
As
shown in Tables 5-1 and
5-2, no Limit Level exceedance for noise monitoring exceedance was recorded in the Reporting Month. Moreover, no noise complaint (which triggered Action Level) was received. No
Notification of Exceedance (NOE) of construction noise criterion was issued and no corrective action was therefore required.
6.1.1
In the Reporting Month, water
quality monitoring was performed at all designated
locations. Impact monitoring schedule provided to all relevant
parties was shown in
Appendix G.
6.1.2
In the Reporting
Month, a total of 13 monitoring days were
carried
out for
water quality impact monitoring. The
monitoring result
of key parameters including Dissolved Oxygen, Turbidity and Suspended Solids are summarized in Tables 6-1 and 6-2. Detailed monitoring
results including in-situ measurements and laboratory analysis data are shown
in Appendix H and graphical plots for monitoring result are shown in Appendix
I.
Table
6-1 Summary
of Water Quality Monitoring Results ¡V M3
under Contract 1
Date |
Parameters |
||
DO (Averaged) (mg/L) |
Turbidity (Averaged) (NTU) |
Suspended
Solids
(Averaged) (mg/L) |
|
2-Sep-20 |
6.44 |
5.1 |
6.0 |
4-Sep-20 |
7.12 |
5.2 |
6.5 |
7-Sep-20 |
5.94 |
3.5 |
3.5 |
9-Sep-20 |
6.12 |
3.4 |
3.0 |
11-Sep-20 |
6.42 |
3.0 |
2.5 |
14-Sep-20 |
6.43 |
3.6 |
3.0 |
16-Sep-20 |
5.07 |
5.2 |
5.5 |
18-Sep-20 |
5.71 |
5.5 |
9.0 |
21-Sep-20 |
6.09 |
3.7 |
4.5 |
23-Sep-20 |
5.40 |
5.0 |
5.5 |
25-Sep-20 |
5.53 |
5.0 |
5.5 |
28-Sep-20 |
6.13 |
4.8 |
6.0 |
30-Sep-20 |
7.26 |
5.2 |
3.0 |
Table
6-2 Summary of Water Quality Monitoring Results (M1,
M2 and M4) under Contract 2
Date |
Parameters |
||||||||
DO (Averaged) (mg/L) |
Turbidity (Averaged) (NTU) |
Suspended
Solids
(Averaged) (mg/L) |
|||||||
M1 |
M2 |
M4 |
M1 |
M2 |
M4 |
M1 |
M2 |
M4 |
|
2-Sep-20 |
6.48 |
# |
6.85 |
2.3 |
# |
2.4 |
4.0 |
# |
<2 |
4-Sep-20 |
11.04 |
# |
5.63 |
2.0 |
# |
2.3 |
3.0 |
# |
3.5 |
7-Sep-20 |
6.61 |
# |
6.21 |
2.4 |
# |
2.6 |
3.5 |
# |
4.5 |
9-Sep-20 |
6.47 |
# |
6.16 |
1.8 |
# |
1.7 |
3.0 |
# |
2.0 |
11-Sep-20 |
6.73 |
# |
6.31 |
1.0 |
# |
1.6 |
3.0 |
# |
<2 |
14-Sep-20 |
6.49 |
# |
6.48 |
6.6 |
# |
2.8 |
6.0 |
# |
3.0 |
16-Sep-20 |
5.70 |
6.06 |
6.09 |
7.1 |
361.5
|
5.0 |
7.0 |
180.0
|
<2 |
18-Sep-20 |
5.69 |
# |
6.14 |
7.6 |
# |
3.8 |
8.5 |
# |
2.0 |
21-Sep-20 |
5.93 |
# |
6.02 |
6.5 |
# |
3.0 |
7.5 |
# |
3.0 |
23-Sep-20 |
5.79 |
# |
5.99 |
4.8 |
# |
3.2 |
7.0 |
# |
2.0 |
25-Sep-20 |
6.20 |
# |
5.94 |
26.6
|
# |
3.9 |
12.0
|
# |
2.0 |
28-Sep-20 |
6.69 |
# |
6.48 |
21.7
|
# |
2.6 |
14.5
|
# |
<2 |
30-Sep-20 |
7.00 |
# |
7.55 |
20.5
|
# |
2.9 |
17.5
|
# |
<2 |
Remarks: (#) During the water monitoring, the channel of M2 was observed dried
up and water sampling was unable be carried out;
Note: Bold and underlined value
indicated Limit Level exceedance
Italic and bold value indicated Action Level exceedance.
6.1.3
During the Reporting Month, field measurements including
temperature of stream water, salinity
concentrations, pH values and the stream
flow velocity for all monitoring locations are summarized in Table 6-3.
Table
6-3 Summary of Field Measurements for
Water Quality
Monitoring Location |
Parameters of field measurements |
|||||||
pH (Averaged) (unit) |
Salinity (Averaged) (ppt) |
Temp (Averaged) (oC) |
Water Flow (Averaged) (m/s) |
|||||
min |
max |
min |
max |
min |
max |
min |
max |
|
M1 |
7.5 |
9.5 |
0.02 |
0.07 |
25.5 |
27.9 |
<0.1 |
<0.1 |
M2 |
8.4 |
8.4 |
0.05 |
0.05 |
27.4 |
27.4 |
<0.1 |
<0.1 |
M3 |
7.2 |
9.3 |
0.02 |
0.06 |
26.2 |
28.9 |
<0.1 |
<0.1 |
M4 |
7.0 |
9.0 |
0.03 |
0.06 |
26.3 |
29.2 |
<0.1 |
<0.1 |
6.2.1
In this Reporting Month, 2 Action Level and 8 Limit Level water quality exceedances
were recorded. The non-compliance of water quality performance is summarized
in Table 6-4.
Table
6-4 Action and Limit (A/L) Levels Exceedance Record
Station |
DO |
Turbidity |
SS |
Total Exceedance |
Project Related exceedance |
|||||
Action |
Limit |
Action |
Limit |
Action |
Limit |
Action |
Limit |
Action |
Limit |
|
M1 |
0 |
0 |
1 |
3 |
1 |
3 |
2 |
6 |
0 |
0 |
M2 |
0 |
0 |
0 |
1 |
0 |
1 |
0 |
2 |
0 |
0 |
M3 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
M4 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
6.2.2
Notification of Exceedance (NOE) and the investigation for exceedance in
the Reporting Month is
summarized in Table 6-5.
Table 6-5 Summary
of Investigation of Water Quality Exceedance in the Reporting Month
Date of Exceedance |
Exceeded Location |
Exceeded Parameter |
Cause of Water Quality Exceedance |
16 &18
Sep 2020 |
M1 & M2 |
Turbidity
& SS |
According to the Contractor¡¦s work programme, there were no construction activities carried out adjacent to locations M1 and M2. The entire Sandy Ridge project was partially commenced at western side of Sandy Ridge and Lin Ma Hang Road, in view of the geographical area of Contract 2, there would be no possible discharge to the monitored channel. According to the weather information from the HKO, there was heavy rainstorm on 15 and 17 September 2020, in which Amber Rainstorm Signal was issued in the afternoon on 15 September 2020. Under the impact of rainstorm, the water quality of the watercourse was deteriorated by the stirred up sediment and runoff from the surrounding environment. Based on the above investigation, it was concluded that the exceedances were related to the impact from rainstorm and not caused by the works under the project. |
25 & 28
Sep 2020 |
M1 |
Turbidity
& SS |
According to the Contractor¡¦s work programme,
there were no construction activities carried out adjacent to locations M1. According to
the site photo taken by the monitoring team on 25 and 28 September. It was
observed that the muddy water was flowing from upstream to M1 and the water
quality was turbid. However, there was no
construction site under the project at upstream. Based on the
above investigation, it was concluded that the exceedance was not caused by
the work under the project. |
30 Sep 2020 |
M1 |
Turbidity
& SS |
According to the Contractor¡¦s work programme,
there were no construction activities carried out adjacent to locations M1. According
to the weather information from the HKO, there was heavy rainstorm on 29
September 2020. Under the impact of rainstorm, the water quality of the
watercourse was deteriorated by the stirred up sediment and runoff from the
surrounding environment. However, there was no construction site under the
project at upstream. Based on the above investigation, it was
concluded that the exceedance was not caused by the work under the project. |
7.1.1
According
to approved EIA report (AEIAR-198/2016), habitat types within project boundary
comprise of watercourse, grassland, upland grassland, plantation, woodland and
developed area. Natural habitats were of moderate ecological value in terms of
species diversity, species rarity, species abundance, ecological linkage as
well as nursery. Moreover, 0.3ha of wet woodland on the northern side of Sandy
Ridge was deemed habitat with high ecological value. Four types of habitats were regarded as
ecologically sensitive habitats, namely wet woodland, watercourses, upland
grassland and woodland. Considering human disturbance in upcoming construction
and operation phases, ecologically sensitive habitats shall be monitored in
accordance with EM&A Manual.
7.1.2
The objective of ecologically
sensitive habitats monitoring is to evaluate the effectiveness of measures to
minimize impacts on concerned habitats from disturbance and pollution. In order
to monitor the effectiveness of the measures to the minimize impact on
ecologically sensitive habitats from disturbance and pollution, monthly
monitoring during construction and operation phases is required as specified in
EM&A Manual. Standard faunal transect and sampling surveys cover both
wetland habitats
(wet woodland and watercourse)
and non-wetland habitats (upland
grassland and woodland).
7.2.1
Wetland
habitats include wet woodland and watercourses. Monitoring surveys using
standardized quantitative methodology will conduct at fixed points. For seasonal watercourse, the survey will
be conducted whenever the habitat appears. Measures
to respond to decreases in numbers of aquatic fauna using the wetland habitats
and Action/Limit levels to trigger these measures are detailed in Table
7-1.
Table 7-1 Action and Limit Levels for Wet Woodland Habitats
Monitoring
Action
Level |
Response |
Limit
Level |
Response |
Reduction
in taxa diversity by 30% |
Investigate
cause and if cause identified as related to the project instigate remedial
action to remove or reduce source of disturbance. |
Reduction
in taxa diversity by 50% |
Investigate
cause and if cause identified as related to the project instigate remedial
action. |
Remarks: Action and Limit Levels and Responses to
Evidence of Declines in Aquatic Fauna
7.2.2
Non-wetland
habitats consist of upland grassland and woodland. Monthly quantitative surveys
of non-aquatic fauna will be conducted using standard route transect
counts. Measures to respond to
decreases in numbers of non-aquatic fauna using the non-wetland habitats and
Action/Limit levels to trigger these measures are detailed in Table
7-2.
Table 7-2 Action and Limit Levels for Non-Wet Woodland
Habitats Monitoring
Action
Level |
Response |
Limit
Level |
Response |
Reduction
in species diversity by 30% |
Investigate
cause and if cause identified as related to the project instigate remedial
action to remove or reduce source of disturbance. |
Reduction
in species diversity by 50% |
Investigate
cause and if cause identified as related to the project instigate remedial
action. |
Remarks: Action and Limit Levels and Responses to
Evidence of Declines in Non-Aquatic Fauna
7.2.3
The ecological survey includes all taxa being
investigated in accordance with EIA report. Schedule of faunal surveys in each year
during construction phase is presented in Table 7-3.
Table 7-3 Schedule of
Faunal Surveys in each year During Construction Phase
Month |
Jan |
Feb |
Mar |
Apr |
May |
Jun |
Jul |
Aug |
Sep |
Oct |
Nov |
Dec |
Mammals |
Ö |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
Birds (day) |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
Birds (night) |
|
|
|
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
|
|
Herpetofauna |
|
|
|
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
|
|
Dragonflies |
|
|
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
|
|
Butterflies |
|
|
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
|
|
Aquatic fauna |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
¡Ô |
Mammal
Survey
7.2.4
Mammal surveys will be conducted along the proposed transects
(shown in Appendix D of the survey report) during both daytime and night time
periods. Along with direct observations, other field signs, such as scats and
tracks, will be searched and recorded if present.
Bird
Survey
7.2.5
Bird surveys will be conducted along the transects
(shown in Appendix D of the survey report) during the surveys, species and their vocalizing individuals
recorded will be enumerated and recorded according to the habitat(s) they are
utilizing.
Herpetofauna Survey
7.2.6
Reptile and amphibian surveys will be conducted along transects
(shown in Appendix D of the survey report) during surveys careful searches of
appropriate microhabitats and refugia for reptiles
and their vocalizing individuals will be undertaken and all reptiles observed
will be identified and counted.
Dragonfly
and Butterfly Survey
7.2.7
Dragonfly and Butterfly surveys will be conducted along transects
(shown in Appendix D of the survey report) during surveys all dragonflies and
Butterflies seen will be identified and counted as accurately as possible.
Aquatic
Fauna Survey
7.2.8
Freshwater fishes and macro-invertebrates will be recorded by
direct observation. All species trapped/recorded will be enumerated and
identified (to the lowest taxonomic level possible), and the species of
conservation importance photographed.
7.2.9
After
each ecological monitoring survey, a monthly report of the survey result and
data collected will be provided with reference to EM&A Manual. An annual
analysis of data will be carried out in order to study if there is any
significant reduction in taxa diversity and abundance.
7.3.1
In the Reporting Month, ecological monitoring was undertaken on 3rd September 2020 at work area of Contract 1. A sunny day. The day and night survey covered wetland
and non-wetland areas. The survey was
conducted by transect and at fixed points. All
species seen will be identified and counted as accurately as possible. Results of
the monitoring survey are presented below:
Monitoring Result for Contract 1
Mammal
7.3.2
There was one mammal recorded in the
monitoring area.
Birds
7.3.3
There
were total of 19 bird individuals from 11 species recorded in the monitoring
area. Two species of conservation interests were
recorded in the monitoring area: Centropus sinensis, Greater Coucal (½Å¯Í¾~ÃY),
Corvus torquatus, Collared
Crow (¥ÕÀV¾~).
Herpetofauna
7.3.4
There was no reptile recorded in the
monitoring area. There was two amphibian species
recorded in the monitoring area.
Butterfly
7.3.5
There
were a total of 7 butterfly
individuals from 7 species recorded in the monitoring area.
Dragonfly
7.3.6
There
were a total of 35 odonate
individual from 4 species recorded in the monitoring area.
Aquatic Fauna Survey (Freshwater communities)
7.3.7
There was
one freshwater community recorded in the monitoring area. One species of
conservation interests were recorded in the monitoring area: Somanniathelphusa zanklon, (ÅI¤M§ô¸yÃÉ)
7.3.8
The summaries
of faunal survey result are shown in Tables 7-4 and 7-5.
Table 7-4 Result
of Faunal Survey under
Contract 1
Scientific Name |
Common / Engineer Name |
Chinese Name |
Conservation Status |
Non- wetland |
Wetland |
Mammal Survey |
|||||
-- |
-- |
-- |
-- |
-- |
-- |
Avifauna Survey |
|||||
Centropus sinensis |
Greater Coucal |
½Å¯Í¾~ÃY |
Class 2 Protected Animal of China; China Red Data Book Status:
(Vulnerable) |
|
1 |
Apus
nipalensis |
House Swift |
¤p¥Õ¸y«B¿P |
|
4 |
|
Lanius schach |
Long-tailed
Shrike |
´ÄI§B³Ò |
|
|
1 |
Corvus torquatus |
Collared
Crow |
¥ÕÀV¾~ |
Fellowes
et al. (2002): LC; IUCN Red List Status: NT |
1 |
|
Pycnonotus jocosus |
Red-whiskered
Bulbul |
¬õ¦Õóí |
|
|
3 |
Pycnonotus aurigaster |
Sooty-headed
Bulbul |
¥Õ³ï¬õÁvóí |
|
|
2 |
Prinia flaviventris |
Yellow-bellied
Prinia |
¶À¸¡økÅa |
|
|
2 |
Prinia inornata |
Plain
Prinia |
¯Â¦âøkÅa |
|
|
1 |
Orthotomus sutorius |
Common
Tailorbird |
ªø§ÀÁ_¸Åa |
|
|
1 |
Gracupica nigricollis |
Black-collared
Starling |
¶Â»âÙʳ¾ |
|
2 |
|
Myophonus caeruleus |
Blue
Whistling Thrush |
µµ¼Sóð |
|
1 |
|
Reptile
Survey |
|||||
-- |
-- |
-- |
-- |
-- |
-- |
Amphibian
Survey |
|||||
Polypedates megacephalus |
Brown Tree Frog |
´³»Lªx¾ðµì |
|
|
+ |
Kaloula pulchra |
Asiatic Painted Frog |
ªá¯U¤fµì |
|
|
+ |
Butterfly Survey |
|||||
Matapa aria |
Common Redeye |
º¿§Ë½º |
|
|
1 |
Parnara ganga |
Rare Swift |
¦±¯¾½_§Ë½º |
|
1 |
|
Pelopidas assamensis |
Great Swift |
¦L«×½\§Ë½º |
|
|
1 |
Polytremis lubricans |
Contiguous Swift |
¶À¯¾¤Õ§Ë½º |
|
|
1 |
Spindasis syama |
Club Silverline |
¨§²É»È½u¦Ç½º |
|
|
1 |
Hestina assimilis |
Red Ring Skirt |
¶Â¯ßßæ½º |
|
1 |
|
Mycalesis mineus |
Dark Brand Bush Brown |
¤p¬Ü²´½º |
|
|
1 |
Odonate Survey |
|||||
Neurothemis tullia |
Pied
Percher |
ºI´³¯ß»f |
|
|
1 |
Orthetrum sabina |
Green Skimmer |
¯U¸¡¦Ç»f |
|
2 |
1 |
Pantala flavescens |
Wandering Glider |
¶À»f |
|
20 |
10 |
Urothemis signata |
Scarlet
Basker |
¨ª´³¦±鈎¯ß»f |
Fellowes et al. (2002): LC |
|
1 |
+: Species appeared but uncountable.
Table 7-5 Result
of Freshwater Communities Survey under Contract
1
Scientific
Name |
Common Name |
Chinese
Name |
Conservation
Status |
3- Sep-20 |
|
Non- wetland |
Wetland |
||||
Somanniathelphusa zanklon |
- |
ÅI¤M§ô¸yÃÉ |
Fellowes et
al. (2002): GC |
|
2 |
7.4.1
In the Reporting Month, ecological monitoring was undertaken on
3rd September
2020 at
work area of Contract 2. A sunny day. The day and night survey covered wetland and non-wetland areas. The
survey was conducted by transect and at fixed point. All species seen will be
identified and counted as accurately as possible. Results of the
monitoring survey are presented below:
Monitoring Result for Contract 2
Mammal
7.4.2
There was no mammal recorded in the
monitoring area
Birds
7.4.3
There were a total of 18 bird
individuals from 7 species recorded in the monitoring area.
Herpetofauna
7.4.4
There was no reptile and amphibian
recorded in the monitoring area.
Butterfly
7.4.5
There were total 9 butterfly
individuals from 7 species recorded in the monitoring area.
Dragonfly
7.4.6
There were total 7 odonate
individuals from 3 species recorded in the monitoring area.
Aquatic Fauna Survey (Freshwater communities)
7.4.7
There were two species of freshwater
fish were recorded in the monitoring area.
7.4.8
The summaries
of faunal survey result are shown in Tables 7-6 and 7-7.
Table 7-6 Result
of Faunal Survey under
Contract 2
Scientific Name |
Common / Engineer Name |
Chinese Name |
Conservation Status |
Non- wetland |
Wetland |
Mammal Survey |
|||||
-- |
-- |
-- |
-- |
-- |
-- |
Avifauna Survey |
|||||
Spilopelia chinensis |
Spotted Dove |
¯]ÀV´³¹§ |
|
|
2 |
Pycnonotus jocosus |
Red-whiskered
Bulbul |
¬õ¦Õóí |
|
|
2 |
Hirundo rustica |
Barn Swallow |
®a¿P |
|
3 |
2 |
Prinia flaviventris |
Yellow-bellied
Prinia |
¶À¸¡økÅa |
|
|
2 |
Orthotomus sutorius |
Common
Tailorbird |
ªø§ÀÁ_¸Åa |
|
|
1 |
Garrulax perspicillatus |
Masked Laughingthrush |
¶ÂÁy¾¸鶥 |
|
4 |
|
Zosterops japonicus |
Japanese
White-eye |
·tºñ¸²´³¾ |
|
2 |
|
Reptile
Survey |
|||||
-- |
-- |
-- |
-- |
-- |
-- |
Amphibian
Survey |
|||||
-- |
-- |
-- |
-- |
-- |
-- |
Butterfly Survey |
|||||
Notocrypta curvifascia |
Restricted Demon |
¦±¯¾³S§Ë½º |
|
|
1 |
Faunis eumeus |
Large Faun |
¦ê¯]Àô½º |
|
2 |
|
Mycalesis mineus |
Dark Brand Bush Brown |
¤p¬Ü²´½º |
|
2 |
|
Papilio polytes |
Common Mormon |
¥É±a»ñ½º |
|
1 |
|
Papilio protenor |
Spangle |
ÂÅ»ñ½º |
|
1 |
|
Catopsilia pomona |
Lemon Emigrant |
¾E¯»½º |
|
1 |
|
Delias pasithoe |
Red-base Jezebel, Common Black Jezebel |
³ø³ß´³¯»½º |
|
1 |
|
Odonate Survey |
|||||
Brachydiplax chalybea |
Blue Dasher |
ÂÅÃB²¨¯ß»f |
|
|
1 |
Copera marginipes |
Yellow Featherlegs |
¶À¯U®°îe |
|
|
2 |
Pantala flavescens |
Wandering
Glider |
¶À»f |
|
|
4 |
Table 7-7 Result of Freshwater
Communities Survey under Contract 2
Scientific Name |
Common Name |
Chinese Name |
Conservation Status |
3- Sep-20 |
Gambusia affinis |
Mosquito fish |
¹°A³½ |
|
+ |
Puntius
semifasciolatus |
Chinese Barb |
¤½uµLŽ䰾 |
|
+ |
+: Species appeared but uncountable.
7.4.1
The
detailed survey reports of Contract 1 and Contract 2
are attached in Appendix K.
7.4.2
The tentative ecology inspection and monitoring in the next
Reporting Month (September
2020) is scheduled on 3rd
October 2020.
7.5.1
Pursuant
to FEP-01/534/2017/A condition 2.19 and EP-534/2017/A condition 2.20, precautionary checks for the presence of nesting birds shall be carried out in the
breeding season (February to July) before vegetation clearance.
7.5.2
In the Reporting period,
there was no precautionary check for the presence of nesting
birds carried out for Contract 1
and Contract 2 outside the breeding season.
8.1.1
The EIA has recommended EM&A for landscape and visual resources
to be undertaken during the design, construction and operational stages of the
project. The design, implementation and maintenance of landscape mitigation
measures is a key aspect of this and should be checked to ensure that they are
fully realized and that potential conflicts between the proposed landscape
measures and any other project works let its are resolved at the earliest
possible date and without compromise to the intention of the mitigation
measures. In addition, implementation of the mitigation measures recommended by
the EIA will be monitored through the site audit programme.
8.1.2
A number of mitigation measures to ameliorate the landscape and
visual impacts of the Project implementation is
summarized in the EMIS of Appendix 13.1 of the EIA Report.
8.1.3
The landscape and visual
mitigation measures proposed should be incorporated in the landscape and
engineering design. Mitigation
measures to be implemented during construction should be adopted from the start
of construction and be in place throughout the entire construction period. Mitigation measures to be implemented
during operation should be integrated into the detailed design and built as
part of the construction works so that they are in place on commissioning of
the Project. Tree transplantation
and compensatory planting should be carried out as early as possible in the
Project with transplantation carried
out prior to construction starting in any particular area.
8.1.4
During
construction phase, Landscape & Visual Monitoring of the contractor¡¦s operations should be conducted monthly and
reported by ET, and countersigned by IEC.
8.2.1
In the Reporting Month, landscape & Visual inspection was
carried out by the Registered Landscape Architect (RLA) for works area of Contract 1 and
Contract 2 on 24th September 2020. The
findings / reminders recorded
during the inspection are presented in Tables 8-1 and 8-2.
Table 8-1 Landscape
& Visual Inspection Finding for Contract 1
Date |
Findings and Reminder |
Follow-Up Status |
24th
September 2020 |
1. Some tree
protection zones were found damaged or missing. |
•
Maintenance for tree protection zone
is undertaken by the Contractor continuously. |
2. The
Contractor was reminded to set up TPZ of proper size and with appropriate
material around retain trees according to approved method statement. |
•
Reminder was noted by the Contractor |
|
3. The
Contractor was reminded to prevent the construction material pile with TPZ and
ensure no works is allowed within the TPZ. |
•
Reminder was noted by the Contractor |
|
4.
Transplanted trees T2465, T2468 and
T2928 were in fair health condition with normal foliage color and density. Contractor is reminded
to provide proper maintenance according to approved method statement. |
•
Reminder was noted by the Contractor. |
Table 8-2 Landscape
& Visual Inspection Finding for Contract 2
Date |
Findings and Reminder |
Follow-Up Status |
24th
September 2020 |
1.
The Contractor
was
reminded to set up TPZ of proper size and with appropriate material around
retain trees according to approved method statement. Contractor should
prevent any construction material pile within TPZ and ensure no works is
allowed within the TPZ. |
• Reminder
was noted by the Contractor. |
|
8.2.2
Inspection checklist of Landscape & Visual signed by RLA is attached in Appendix L.
9.1.1
Waste management was carried out by an on-site Environmental Officer
or an Environmental Supervisor from time to time in accordance with the Waste
Management Plan (WMP).
9.2.1
All
types of waste arising from the construction work are classified into the
following:
l Construction & Demolition (C&D)
Material;
l Chemical Waste;
l General Refuse; and
l Excavated Soil.
9.2.2
The
quantities of waste for disposal in this Reporting Month are summarized in Table 9-1 and 9-2 and
the Monthly Summary Waste Flow Table is shown in
Appendix M. Whenever possible, materials were reused
on-site as far as practicable.
Table
9-1 Summary of Quantities of Inert C&D
Materials
Type of Waste |
Contract 1 |
Contract 2 |
||
Quantity |
Disposal Location |
Quantity |
Disposal Location |
|
Total generated C&D Materials (Inert) (¡¥000m3) |
3.978 |
-- |
806.780 (#) |
-- |
Reused
in this Contract (Inert) (¡¥000m3) |
1.980 |
Within Contract area |
0 |
-- |
Reused
in other Projects (Inert) (¡¥000m3) |
0 |
-- |
0 |
-- |
Disposal
as Public Fill (Inert) (¡¥000m3) |
1.998 |
Tuen Mun Area 38 |
806.780 (#) |
Tuen Mun Area 38 |
Remark:
the unit is ¡¥000kg
Table 9-2 Summary
of Quantities of C&D Wastes
Type of Waste |
Contract 1 |
Contract 2 |
||
Quantity |
Disposal Location |
Quantity |
Disposal Location |
|
Recycled
Metal (¡¥000kg) |
0 |
-- |
0 |
-- |
Recycled Paper / Cardboard Packing (¡¥000kg) |
0 |
-- |
0 |
-- |
Recycled Plastic (¡¥000kg) |
0 |
-- |
0 |
-- |
Chemical Wastes (¡¥000kg) |
0 |
-- |
0 |
-- |
General Refuses (¡¥000m3) |
0.037 |
NENT Landfill |
10.080 (#) |
NENT Landfill |
Remark:
the unit is ¡¥000kg
9.2.3
Since
canteen and/or kitchen are not allowed setting on the Project site,
no domestic wastewater was
generated from the Project.
10.1.1 According to the approved EM&A Manual, environmental
site inspection should be led by RE and attended by the Contractor and ET at
least once per week. Regular environmental site inspections shall
be carried out to assess the environmental performance.
Contract 1
10.2.1 In the Reporting Month, joint site
inspections for
Contract 1 to evaluate the site
environmental performance were carried out by the RE, ET and the Contractor on
3rd, 10th , 17th, 24th and 30th
September 2020
and IEC attended joint site inspection on 17th September 2020. No non-compliance
was noted.
10.2.2 The findings / deficiencies
that observed during the weekly site inspection are listed in Table
10-1.
Table 10-1 Site
Observations for the Works of Contract 1
Date |
Findings / Deficiencies |
Follow-Up Status |
3rd September 2020 |
The
Contractor was reminded to remove stagnant water after rainstorm. (Noise
Barrier) |
Reminder
only |
10th September 2020 |
Chemical container should be
placed in drip tray. (Noise Barrier) |
The chemical container was
placed in drip tray. |
|
The Contractor was reminded to
remove sediment in the drip tray of generator. (PTA area) |
Reminder only |
17th September 2020 |
NRMM
and NEL label should be provided on the air compressor. (CS15) |
The
air compressor was removed. |
|
The
hole in drip tray should be sealed to prevent chemical leakage. (CS15) |
The
hole in drip tray was sealed. |
|
Suspected
oil stain should be clean and disposed as chemical waste. (CS15 ) |
Suspected
oil stain was clean. |
|
The
Contractor was reminded to maintain good housekeeping on site. (General) |
Reminder
only |
24th September 2020 |
The
Contractor was reminded to dispose wastes regularly. |
Reminder
only |
30th September 2020 |
NRMM
label should be provide for any generator using on
site. |
NRMM
label was found not required for the generator after check its specification |
|
The
Contractor was reminded to remove stagnant water after rainstorm. |
Reminder
only. |
Contract 2
10.2.3 In the Reporting Month, joint
site inspections for
Contract 2 to evaluate the site
environmental performance carried out by the RE, ET and the Contractor was on 3rd,
10th , 17th, 24th and 30th
September
2020 and IEC attended joint site inspection on 17th September 2020.
No non-compliance was noted.
10.2.4 The findings / deficiencies
that observed during the weekly site inspection are listed in Table
10-2.
Table 10-2 Site Observations
for the Works of Contract 2
Date |
Findings / Deficiencies |
Follow-Up Status |
3rd
September 2020 |
Chemical container should be
placed in dri tray to prevent land contamination.
(C225) |
Chemical container was
removed. |
|
The Contractor was reminded
to maintain good housekeeping on site. (C225) |
Reminder only |
|
The Contractor was reminded
to remove stagnant water in the tray. (C225) |
Reminder only |
10th
September 2020 |
The Contractor was reminded to
provide proper mitigation measure during soil nailing to reduce dust impact. |
Reminder only. |
17th
September 2020 |
Suspected oil stain should be
check and disposed as chemical waste. (MKTR) |
Suspected oil stain was
clean. |
|
Chemical containers should be
placed in drip tray. (TTA1) |
Chemical containers were
removed. |
|
The Contractor was reminded
to repair or replace the broken water barriers to prevent mosquito breeding. |
Reminder only. |
|
The Contractor was reminded
to remove stagnant water after rainstorm. |
Reminder only. |
24th
September 2020 |
The Contractor should provide
proper NRMM label for the air compressor at CS20. |
NRMM label with proper color was
displayed on the air compressor. |
30th
September 2020 |
The Contractor was reminded
to maintain good housekeeping on site. (RW13 &14) |
Reminder only. |
11.1.1 In
the Reporting Month,
one (1) environmental complaint was received with respect to illegal muddy
water discharge from site. Besides,
no summons and prosecution under the EM&A Programme was lodged for the
project. Investigation for the
complaint was undertaken by the ET and presented below.
Complaint received on 8 September 2020
11.1.2
On 8 September
2020, EPD received a complaint from DSD regarding suspected
illegal discharge from a CEDD's construction site at the upstream leading to the
accumulation of silting at DSD's drainage channel at the downstream Nam Hang Stream. The
closest construction site to the DSD concerned drainage channel was Contract 2
of Sandy Ridge Project.
11.1.3
Joint site inspection by the EPD, RE, IEC, ET and the Contractor was
carried out on 10 September 2020 for complaint investigation and the inspected
area included construction site of Contract 2 in Sandy Ridge and the adjacent
Nam Hang Stream. During the
inspection, no muddy water discharge from the suspicious construction site was
observed
11.1.4
In our investigation, there was no evident of muddy/ turbid discharge
from the construction site and water quality mitigation measures implemented in
Contract 2 was general in order and no deficiency of water quality impact was observed
during weekly site inspection. It
is considered that the complaint was no valid to the Contract. However, the Contractor was reminded to
fully follow the mitigation measures as recommended in the EM&A Manual as
far as practicable to minimize the impact and nuisance to the public.
11.1.5 In
the Reporting Month,
No summons and prosecution
was lodged for the Contract. The
statistical summary table of the environmental complaint, summons and
prosecution are presented in Tables 11-1, 11-2 and 11-3.
Table
11-1 Statistical
Summary of Environmental Complaints
Reporting Month |
Environmental Complaint
Statistics |
|||
Frequency |
Cumulative |
Complaint Nature |
||
1 ¡V 30 September 2020 |
Contract 1 |
0 |
0 |
NA |
1 ¡V 30 September 2020 |
Contract 2 |
1 |
1 |
Water |
Table 11-2 Statistical
Summary of Environmental Summons
Reporting Month |
Environmental Summons
Statistics |
|||
Frequency |
Cumulative |
Complaint Nature |
||
1 ¡V 30 September 2020 |
Contract 1 |
0 |
0 |
NA |
1 ¡V 30 September 2020 |
Contract 2 |
0 |
0 |
NA |
Table 11-3 Statistical
Summary of Environmental Prosecution
Reporting Month |
Environmental Prosecution
Statistics |
|||
Frequency |
Cumulative |
Complaint Nature |
||
1 ¡V 30 September 2020 |
Contract 1 |
0 |
0 |
NA |
1 ¡V 30 September 2020 |
Contract 2 |
0 |
0 |
NA |
12.1.1 The environmental mitigation
measures that recommended in the Implementation Schedule for Environmental Mitigation
Measures (ISEMM) in the approved EM&A Manual covered the issues of dust,
noise, water and waste and they are summarized presented in Appendix N.
12.1.2 The Works of Contract 1
and Contract 2 under the Project shall be
implementing the required environmental mitigation measures according to the
approved EM&A Manual subject to the site condition. Environmental mitigation measures implemented
in this Reporting Month is summarized in Table 12-1.
Table 12-1 Environmental
Mitigation Measures
Issues |
Environmental Mitigation Measures |
Water
Quality |
¡P Provided efficient silt removal facilities to reduce SS level before effluent
discharge. ¡P Provided ditches, earth bunds or sand bag
barriers to minimize polluted runoff. ¡P Temporary drainage was provided
to prevent runoff going through site
surface and minimize polluted runoff. ¡P Provided perimeter cut-off drains at site
boundaries to intercept storm runoff from crossing the site. ¡P Exposed
slopes surface were compacted and covered with tarpaulin
or similar means. ¡P Provided portable chemical toilets on site. |
Air
Quality |
¡P Maintain
damp / wet surface on access road. ¡P Maintain low vehicular speed within the works areas. ¡P Provided vehicle wheel washing facilities at each
construction site
exit; ¡P Provided water spraying for all active works area. ¡P Stockpiles of dusty material were covered with
impervious sheeting. ¡P Provided workers to clear dusty materials at
the vehicle entrance or exit regularly. ¡P Stockpile
more than 20 bags of cement or dry pulverized fuel ash (PFA) has been covered entirely by impervious
sheeting or placed in an area sheltered on the top and the 3 sides. |
Noise |
¡P Restricted operation time of plants from 07:00
to 19:00 on any working day except for Public Holiday and Sunday. ¡P Keep
good maintenance of plants ¡P Placed noisy plants away from residence and school ¡P Provided noise barriers or hoarding to
enclose the noisy plants or works ¡P Shut
down the plants when not in used. |
Waste
and Chemical Management |
¡P Provided on-site sorting prior to disposal ¡P Followed requirements and procedures of the
¡§Trip-ticket System¡¨ ¡P Predicted required quantity of concrete
accurately ¡P Collected the unused fresh concrete at
designated locations in the sites for subsequent disposal |
General |
¡P The
site was generally kept tidy and clean. |
12.2.1
According to the
information provided by HCTYJV, the
forthcoming construction activities for Contract 1
are listed below:
General Site Housekeeping
Bulk Excavation
Construction of cut slope, installation of soil
nailing and construction of surface channel and planter wall.
Construction of fill slope and surface channel
Construction of pick-up and drop-off point near Man
Kam To Road
Construction of sewer and storm drain
Construction of noise barrier
Construction of watermains
12.2.2
According to the
information provided by Sang Hing, the
forthcoming construction activities for Contract 2
are listed below:
Construction of Manhole, gullies, drainage pipe at Lin
Ma Hang Road between CH565-675 Southbound & CH1345-1377 Northbound.
Man Kam To Road DN800 DI Sewerage Pipe
FM4.18-4.19(50m)
Reinstatement for Man Kam To Road DN800 DI Sewerage
Pipe Trench FM4.18-FM4.21 (120m)
Filling works for slope FS18 (Part A1)
Drainage Works at Road E CH200-300
Retaining Wall 14 construction
Soil Nail Works at Lin Ma Hang Road Slope C225
& C231
Soil Nail Works at Sandy Ridge Slope CS20
Fanling Station Road Covered Walkway
12.3.1 Key issues to be considered in the coming
month for the works of Contract 1 include:
Implementation of control measures for
rainstorm;
Regular clearance of stagnant water during
wet season;
Implementation of dust suppression measures
at all times;
Potential wastewater quality impact due to
surface runoff;
Potential fugitive dust quality impact due
from the dry/loose/exposure soil surface/dusty material;
Ensure dust suppression measures are
implemented properly;
Sediment catch-pits and silt removal facilities
should be regularly maintained;
Discharge of site effluent to the nearby
wetland is prohibited;
Nearby wetland prohibited stockpiling
and/or disposal of materials;
Follow-up of improvement on general waste
management issues; and
Implementation of construction noise
preventative control measures.
12.3.2 The
Contractors are reminded to pay special attention on water quality
mitigation measures and should fully
implement the measures as
recommended in the EM&A Manual, in particular to prevent surface runoff and other pollutants
from flowing to local stream and Conservation Area. The implementation of water quality
mitigation measures conducted by the Contractors is shown in Appendix O.
13.1.1 This is the 26th Monthly EM&A Report presenting the
monitoring results and inspection findings for the period of 1st to 30th September 2020.
13.1.2 No 24-hour or 1-hour TSP monitoring result
that triggered the Action or Limit Levels was recorded. No NOEs or the associated corrective action was
therefore required.
13.1.3 No noise complaint (which is an Action
Level exceedance) was received and no construction noise measurement result
that exceeded the Limit Level was
recorded in this Reporting Month. No NOEs or the associated
corrective actions were therefore issued.
13.1.4 For
water quality monitoring, a total of 2 Action Level and 8 Limit Level exceedances
were recorded In the Reporting Period.
NOE were issued to relevant parties and the investigation has been
conducted by ET. Investigation revealed that the Contractor had implemented
water quality mitigation measures and the exceedances were related the
rainstorm and not caused by the work under the project.
13.1.5 Monthly ecological monitoring for sensitive habitat for area of
Contract 1 and Contract 2 were undertaken on 3rd September 2020. No significant reduction
in taxa diversity and abundance was observed
in the both surveys. Furthermore, as
advised by both Contractors, there were no vegetation clearance conducted within
the site in the Reporting Month and therefore precautionary check for the presence
of nesting birds was not required.
13.1.6 Landscape and
visual inspection at
both Contracts were undertaken by the RLA on 24th
September 2020. The Contractor was reminded to prevent the
construction material pile within TPZ and ensure no works is allowed within the
TPZ.
13.1.7
In the Reporting Month, one
(1) environmental complaint was received from
EPD regarding suspected illegal discharge from a CEDD's construction site at
the upstream leading to the accumulation of silting at DSD's drainage channel
at the downstream Nam Hang Stream. In our investigation,
there was no evident of muddy/ turbid discharge from the construction site and
water quality mitigation measures implemented in Contract 2 was general in
order and no deficiency of water quality impact was observed during weekly site
inspection. It is considered that
the complaint was not valid to the Contract. However, the Contractor was reminded to
fully follow the mitigation measures as recommended in the EM&A Manual as
far as practicable to minimize the impact and nuisance to the public.
13.1.8 No notification of summons or prosecution were
received and recorded for the project.
13.1.9 In the Reporting Month, joint site inspections for
Contract 1 to evaluate the site
environmental performance were carried out by the RE, ET and the Contractor on 3rd,
10th, 17th, 24th and 30th September 2020 and IEC attended joint site inspection on 17th September 2020. No non-compliance
was noted.
13.1.10 Joint site inspections for
Contract 2 to evaluate the site
environmental performance carried out by the RE, ET and the Contractor was on 3rd, 10th,
17th, 24th and 30th September 2020 and IEC attended joint site inspection on 17th September 2020. No non-compliance was noted.
13.2.1
The Contractors are reminded to pay special
attention on water quality mitigation measures and should fully implement the
measures as recommended in the EM&A Manual, in particular to prevent
surface runoff and other pollutants from flowing to local stream and
Conservation Area.
13.2.2
Since dry season is approaching, air
quality mitigation measures such as wheel wash facilities, watering of haul roads,
loose soil construction surface and covering of dusty materials with tarpaulin
sheet should be implemented as far as practicable.
13.2.3 Construction noise would be a key
environmental issue during construction phase of the Project. Noise mitigation measures such as using
quiet plants and mobile noise barriers should be implemented in accordance with
the EM&A requirement.
13.2.4 Since some of the construction site under the Project is
located near villages, both
Contractors should fully implement air quality mitigation
measures to reduce construction dust emission.
13.2.5 Furthermore, daily cleaning and weekly tidiness
shall be properly performed and maintained. In addition, mosquito control should be performed to prevent mosquito
breeding on site.
